One laser two splitting beams paths laser stainless steel welding machine

FOB Reference Price:Get Latest Price
$5,000.00 - $8,500.00 / Set | 1 Set/Sets (Min. Order)
Power(W):
500W
Model Number:
ZG-W500
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Usage:
welding
Max. Output Power:
200W
Condition:
New
Warranty:
1 year
After-sales Service Provided:
Online support, Field installation, commissioning and training, Video technical support, Engineers available to service machinery overseas
Place of Origin:
Hubei, China
Brand Name:
Chutian laser
Certification:
CE
Dimensions:
1100mm*600mm*1200mm
Single Pulse Energy:
40-80J
Pulse Width:
0.2-20ms
Focal Spot Diameter:
0.1-3.0mm
Wavelength:
1.06μm
Applicable Industries:
Manufacturing Plant
Laser Source Brand:
RAYCUS
Key Selling Points:
Sustainable
Keywords:
One laser two laser stainless steel welding machine
Laser type:
YAG
Cooling System:
Water Cooling
Continuous working time:
≥16h
Input voltage:
AC 220V 50Hz
Pulse Frequency:
0-50Hz
Power consumption:
3.5KW
Weight:
200kg
Customized:
Available
Supply Ability
Supply Ability:
100 Set/Sets per Month Laser Welding Machine
Packaging & Delivery
Packaging Details
Wooden package for international export standard
One laser two splitting beams paths laser stainless steel welding machine
Port
ShangHai
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated

One laser two splitting beams paths laser stainless steel welding machine

Product Description

 Introduction:

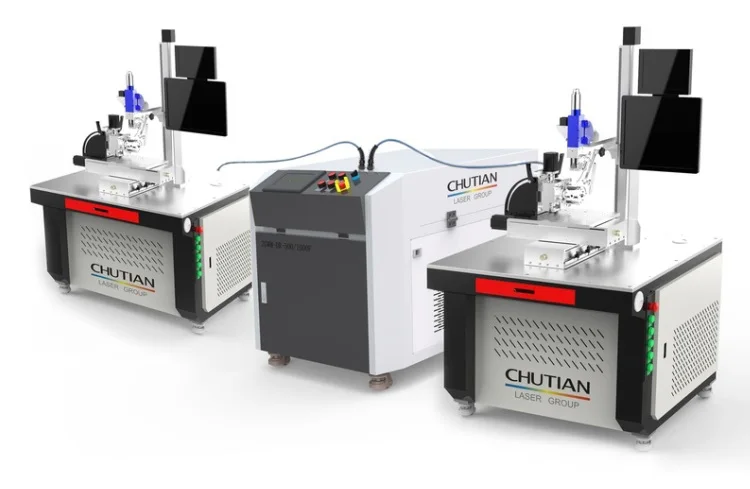

The device can realize two-way optical fiber output, and two-way optical fiber realizes time-divisional light output through shutter switching. It is guided to two welding stations through the optical fiber and the welding head, and the two welding head positions are controlled by time sharing, and the workpiece welding is sequentially performed in accordance with the fixture.

photobank (3).jpg

Parameters:

Product NameOne laser two splitting beams paths laser stainless steel welding machine
Equipment nameSpecification model quantity remark
Laser welding machine500w 1Soft light path 2 fiber
Welding headF1202With air knife protection
Workbench control systemCNC2CNC2000
optical fiberSIO.6*5m2Mitsubishi Japan
Workbench300*200mm2Cross
Operating cabinetType I2
Lifts300mm2Chutian Laser
CCD monitoring30 times2Taiwan Mintong
Chiller1p1Hanli
Rotary fixture



2

Motor rotation

                                                                                                                                                                                                                Equipment workflow:

1.Manually clamp the sample to the welding station 1.

2.The welding head 1 emits light, and the fixture of the station 1 drives the sample to perform the rotary welding.

3. After the welding of the station 1 is completed, the laser is switched to the station 2 for welding, and the station 1 is manually loaded and unloaded, waiting for the next welding.

4. After the welding of the station 2 is completed, the laser is switched to the station 1 for welding again, and the station 2 performs manual loading and unloading, waiting for the next welding.



Gold Jewelry Laser Soldering Machine 200w Mini Laser Welding Machine Laser Welder Price Laser Machinery
Application

Applicable Industry:

This welder is widely used in aviation, aerospace, sports products, medical instrument, titanium alloy denture, instrument, electronics, machinery, automobile, etc.



Applicable Materials:

Materials that can be welded are extensive: cold work alloy steel, hot work alloy steel, nickel tool steel, steel alloy, high tenacity aluminum alloy, etc. Other metals like gold, silver, brass, aluminum-magnesium alloy, titanium, and platinum are also applicable.

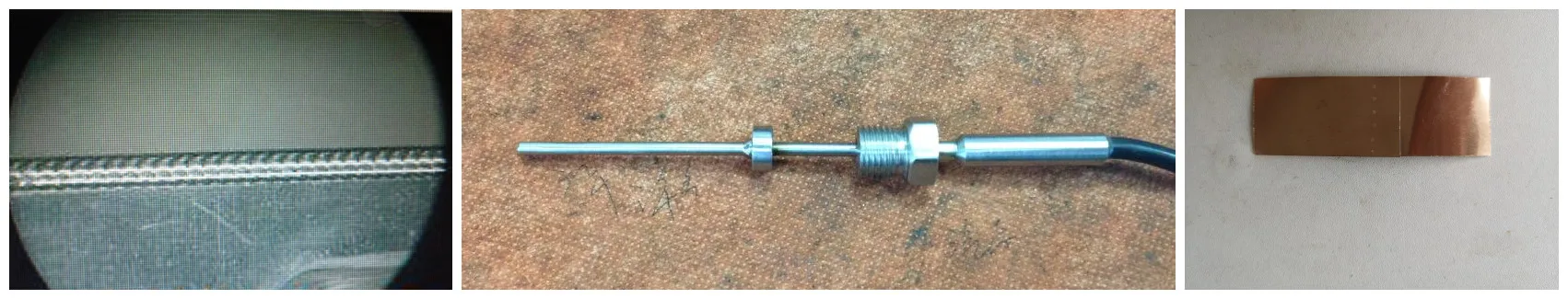

Sample show: .jpg



More details, Please click here!!!

Hot Products

Company Information

Gold Jewelry Laser Soldering Machine 200w Mini Laser Welding Machine Laser Welder Price Laser Machinery

As a leading laser system manufacturer, Wuhan Chutian Industrial Laser Equipment Co., Ltd. has been devoted to the design and production of industrial laser systems for over 30 years. Based on the domestic and international cooperation with laser, laser system and laser related components manufacturers worldwide.

From high power to small power Chutian Laser has been a major laser solution provider as Laser marking, Laser welding, Laser cutting as well as laser micro machining and 3D printing in China.

After 30 years of developing we've been able to continually upgrade with European and American laser technology. We sincerely welcome all the customers to visit our company!



Learn more about us, welcome to click https://chutianlaser.en.alibaba.com



Gold Jewelry Laser Soldering Machine 200w Mini Laser Welding Machine Laser Welder Price Laser Machinery

One laser two splitting beams paths laser stainless steel welding machine

Packaging & Shipping

Gold Jewelry Laser Soldering Machine 200w Mini Laser Welding Machine Laser Welder Price Laser Machinery

Packaging

Net Weight

 305KG 400KG
Package Volume 2.5CBM 3CBM
Package Weight 345KG

450KG

Delivery Time

The delivery lead time would be 7-15 day against down payment.

ShippingAs for the wholesalers/distributors,we could send the cargo by air, by sea or by railways via reliable forwarder

Gold Jewelry Laser Soldering Machine 200w Mini Laser Welding Machine Laser Welder Price Laser Machinery

FAQ

Q1: Are you a factory or a trading company ?
A1: We are factory manufacturing packaging machines and we provide perfect OEM and after-sale service.

Q2: How was the machine guarantee?
A2: We offer you 12 months guarantee.

Q3: How can I use the machine, if I'm a new buyer?
A3: We will deliver English manual and video with the machine to you. If you still need our help, please contact us.

Q4: How do you control your quality?
A4: We'll test the machine before the shipment, and let it go through every corner to check the accuracy. Machines can not be dispatched until finished machine pass all essential complicated test after running at least two days without stopping to ensure quality.

Q5: How can I know your machine is designed for my product?
A5: You can send us samples of your product and we test it on machine.
